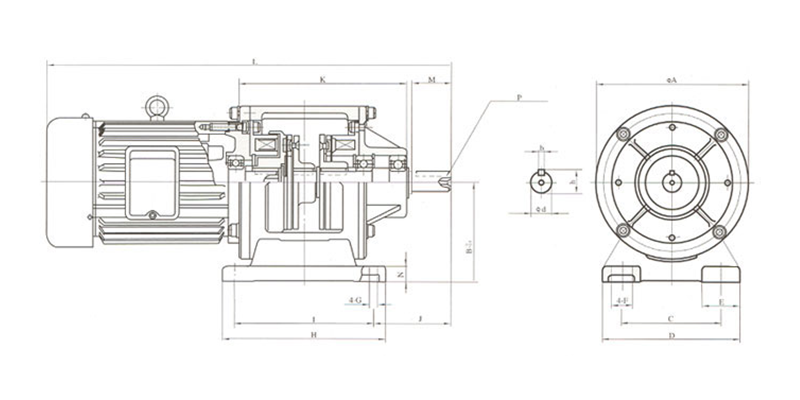

MCB 유니트
| 형 식 | 측경 (φdj) |
보스경 (b×h) |
A | B | C | D | E | F | G | H | I | J | K | L | M | N | P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCB-0.5 | 11 | 4×12.5 | 100 | 65 | 65 | 90 | 28 | 13.5 | 6.5 | 105 | 90 | 48.5 | 108 | 335 | 25 | 10 | M4×D.P8 |
| MCB-1.0 | 14 | 5×16 | 100 | 65 | 65 | 90 | 28 | 13.5 | 6.5 | 105 | 110 | 65 | 136 | 392 | 40 | 10 | M4×D.P8 |
| MCB-2.0 | 19 | 5×21.5 | 150 | 90 | 105 | 140 | 35 | 20 | 1.1 | 160 | 130 | 80.5 | 163 | 452 | 40 | 15 | M6×D.P11 |
| MCB-4.0 | 24 | 7×27 | 190 | 112 | 135 | 175 | 42 | 24 | 11 | 185 | 160 | 108 | 205 | 535 | 50 | 15 | M6×D.P11 |
| MCB-8.0 | 28 | 7×31 | 230 | 132 | 155 | 200 | 45 | 28 | 14 | 230 | 200 | 145 | 268 | - | 60 | 18 | M6×D.P11 |
| MCB-13 | 28 | 7×31 | 230 | 230 | 155 | 200 | - | 28 | 14 | 230 | 200 | 145 | 268 | - | 60 | 18 | M6×D.P11 |
| MCB-16 | 38 | 10×41.5 | 290 | 290 | 195 | 240 | 47 | 28 | 14 | 270 | 240 | 188 | 328 | - | 80 | 20 | M6×D.P11 |
| MCB-30 | 38 | 10×41.5 | 330 | 330 | 280 | 355 | 50 | 28 | 15 | 280 | 245 | 215 | 400 | - | 80 | 25 | M10×D.P17 |
| MCB-50 | 50 | 15×55 | 380 | 380 | 330 | 420 | 50 | 37 | 17 | 390 | 330 | 274 | 490 | 1190 | 100 | 30 | M10×D.P20 |
| MCB-70 | 50 | 15×55 | 420 | 420 | 385 | 475 | 60 | 37 | 17 | 420 | 350 | 309 | 540 | 1300 | 110 | 30 | M10×D.P20 |
